Creative Industrial Systems is committed to making your problem our solution. Time is money. When a project is on hold waiting for components, it is costing you and your customer money.
Our industrial photo eye mounting brackets, Allen Bradley compatible brackets, and photo eye control bracket assemblies arrive with every piece needed to complete installation. Your team will never need to send someone to the local hardware store to search for missing pieces.
Count on Creative Industrial Systems to be not only your conveyor safety equipment supplier but also your partner who is always there to keep you moving in the right direction.

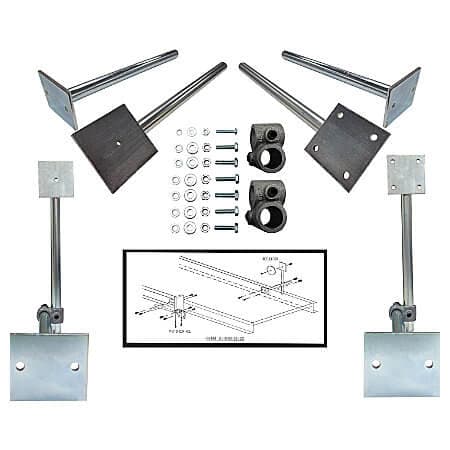

PEBKT-21-000-21-00
5 & 5 Hole Photo Eye Control Bracket Assembly (Steel/Zinc)
Available in Safety Yellow and Safety Orange.
Material: 12" Long X 1/2" Schedule 40 Zinc Plated Pipe with 3"X3"X3/16" Zinc Plated C.R.S. Plate
Allows for 12" Vertical or Horizontal Adjustment (Depending on Mounting Orientation)
Plate has 4 Mounting Holes (9/32" Dia.) on 2" Centers for Photo Eye Control Attachment (Requires Angle or Swivel Type Adapter Bracket from Photo Control Manufacturer)
Plate Mounting Holes Allow for a Total of 4 Photo Eye Control Mounting Orientations
Supplied with Zinc Plated 12" Long X 1/2" Schedule 40 Pipe and 2 Hole (9/32" Diameter) Standoff Mounting Plate, Heavy Duty 1/2" Pipe Cross Clamp and All Necessary Hardware for Mounting to Equipment
(Note: This Control Bracket Assembly May Be Used with Many Popular Photo Eye Controls That Use the Universal 2" on Center Mounting Pattern.)

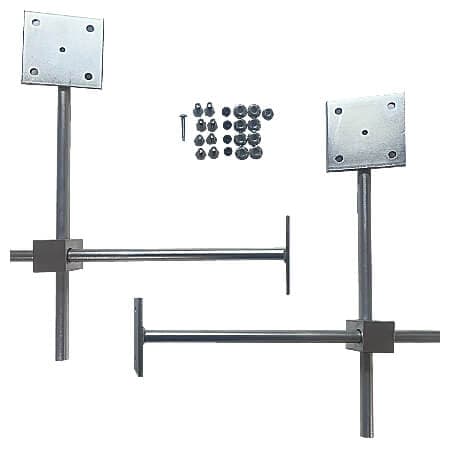

PEBKT-22-000-22-00
Standard 5 & 5 Hole Photo Eye Bracket Assembly With Ability To Adapt Any Hole Pattern (Steel/Zinc)
Material: 12” long x ¼” solid carbon steel rod, zinc plate (or powder-coated) with 3”x3”x3/16” zinc plated CRS plate
Allows for 12” vertical or horizontal adjustment (depending on mounting orientation)
The standard plate has a 5 mounting holes (9/32” Dia.) on 2” centers for photo eye control bracket attachment
Supplied with (2) 12” long rods connected with an aluminum pipe cross with individual set screws and necessary hardware for configuration

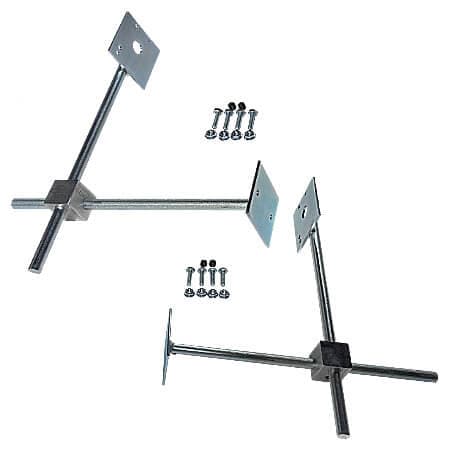

PEBKT-QC
Material: 12” long x ¼” solid carbon steel rod, zinc plate (or powder-coated) with 3”x3”x3/16” zinc plated CRS plate with a .72 Diameter center hole
Allows for 12” vertical or horizontal adjustment (depending on mounting orientation)
Supplied with (2) 12” long rods connected with an aluminum pipe cross with individual set screws and necessary hardware for configuration
Photo Eye Control Bracket Kits

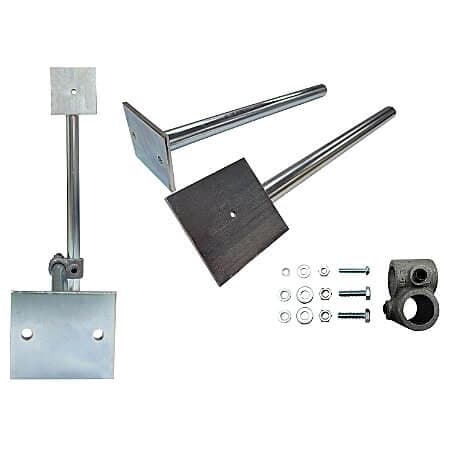

PEBKT-00-000-21-00
1 Hole Photo Eye Bracket Kit (Steel/Zinc)
Available in Safety Yellow and Safety Orange
Material: 12” long x ¼” solid carbon steel rod, zinc plate (or powder-coated) with 3”x3”x3/16” zinc plated CRS plate with a .72 Diameter center hole
Allows for 12” vertical or horizontal adjustment (depending on photo eye mounting orientation)
Supplied with (2) 12” long rods connected with an aluminum pipe cross with individual set screws and necessary hardware for configuration

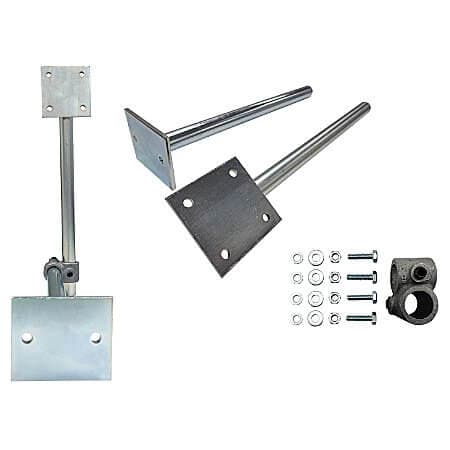

PEBKT-21-000-00-00
4 Hole Photo Eye Bracket Kit (Steel/Zinc)
Available in Safety Yellow and Safety Orange
Material: 12” long x ¼” solid carbon steel rod, zinc plate (or powder-coated) with 3”x3”x3/16” zinc plated CRS plate with a .72 Diameter center hole
Allows for 12” vertical or horizontal adjustment (depending on photo eye mounting orientation)
Supplied with (2) 12” long rods connected with an aluminum pipe cross with individual set screws and necessary hardware for configuration

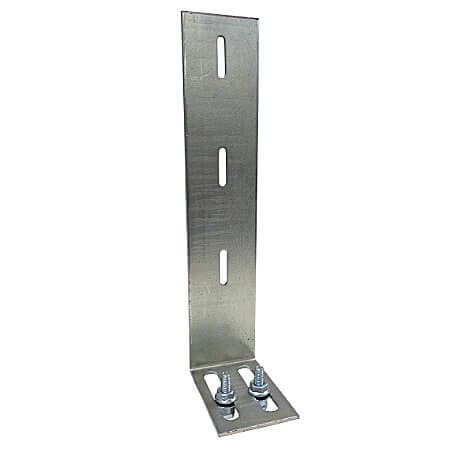

PEBKT-00-000-22-00
Photo Eye Bracket 3 Hole Kit
Reflectors Sold Separately.
Photo Eye Mounting Brackets
CISBH-01
Industrial Photo Eye Mounting Bracket
CISBH-02
Industrial Photo Eye Mounting Bracket
CISBH-03
Industrial Photo Eye Mounting Bracket
CISBH-04
Industrial Photo Eye Mounting Bracket
Telemecanique XUM9APCNL03M12 Photo Eye Brackets

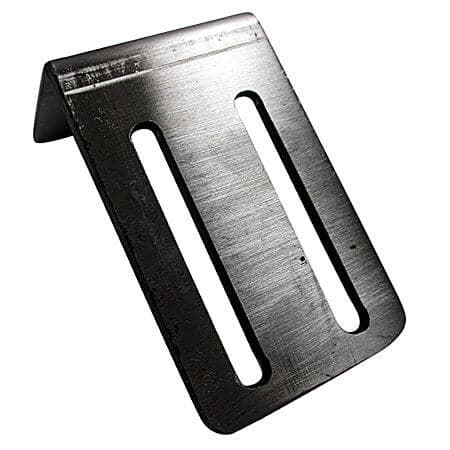

ATX-02
Photo Eye Bracket
ATX-03
Photo Eye Bracket

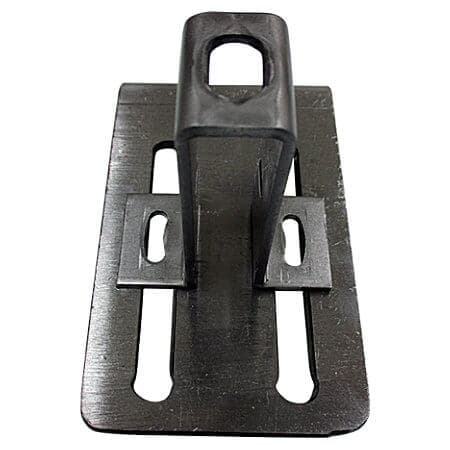

ATX-05
Photo Eye Bracket
Complete Unit Combo
Universal Photo Eye Mounting Brackets
CIS-ABU-PBKT
Industrial Photo Eye Mounting Bracket
Compatible with Allen Bradley photo eyes.
CIS-Universal Combo
Industrial Photo Eye Mounting Bracket
Used for mounting Sick electronics.
