01
Tension that survives the turn
Sealed-bearing sheaves keep the cable centered through every direction change. The switch trips on the right load, not a friction-spiked false reading.
Product line · Pulley systemsDirection changes
Direction changes
without the drag.
Tri-pulley, fixed, and swivel pulleys for conveyor pull-stop cable runs. Built for 1/8" aircraft cable and the direction changes a single-cable e-stop line needs.
- Single-axis pulleys
- Fixed
- Multi-axis turns
- Swivel
- Plated steel body
- Zinc
Filters
5 of 5 results
01 / Pulley

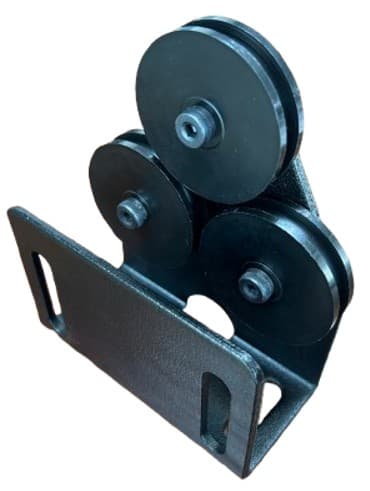

TRI-P-U
U-shape Tri-Pulley universal bracket
Three-wheel U-shape pulley bracket for conveyor cable runs, supplied as a kit with all hardware needed for installation.
Specifications
- Bracket
- U shape
- Wheels
- 3 - 2" wheels
- Kit
- Includes all hardware needed for installation
- Sold as
- Quantity of 1
02 / Pulley

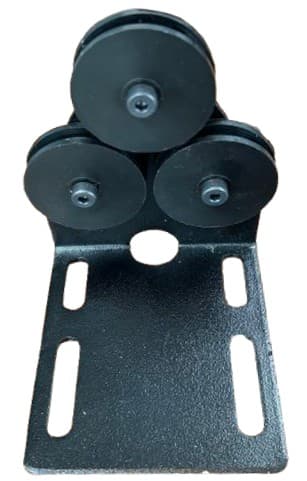

TRI-P-90
90-degree bend Tri-Pulley universal bracket
Three-wheel pulley bracket with a 90-degree bend for corner turns, supplied as a kit with all hardware needed for installation.
Specifications
- Bracket
- 90 degree bend
- Wheels
- 3 - 2" wheels
- Kit
- Includes all hardware needed for installation
- Sold as
- Quantity of 1
03 / Pulley

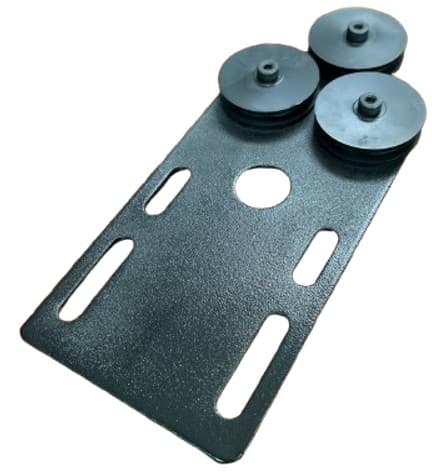

TRI-P-FLT
Flat Tri-Pulley universal bracket
Three-wheel flat pulley bracket for conveyor cable runs, supplied as a kit with all hardware needed for installation.
Specifications
- Bracket
- Flat
- Wheels
- 3 - 2" wheels
- Kit
- Includes all hardware needed for installation
- Sold as
- Quantity of 1
04 / Pulley

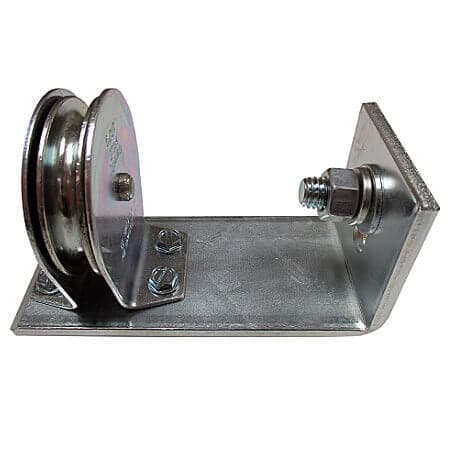

Pulley-02
2" diameter fixed pulley
Fixed pulley for use with 1/8" 7X7 or 7X19 strand galvanized aircraft cable, pre-mounted on a zinc-plated right-angle bracket.
Specifications
- Diameter
- 2"
- Cable
- 1/8" 7X7 or 7X19 strand galvanized aircraft cable
- Bracket
- Pre-mounted with #10-24 hardware on a zinc-plated right-angle bracket (3/16" thick)
- Mounting
- Supplied with 3/8" hardware for mounting to conveyor side channel
05 / Pulley

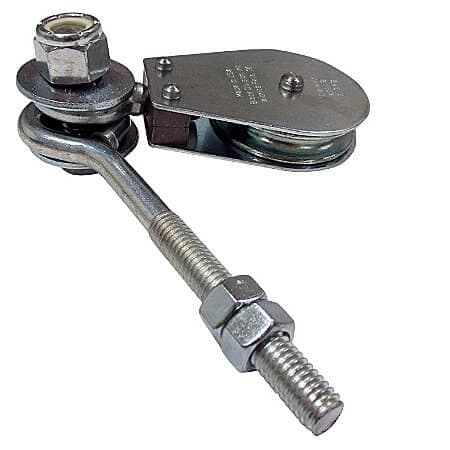

Pulley-01
2" diameter swivel pulley
Swivel pulley for use with 1/8" 7X7 or 7X19 strand galvanized aircraft cable, supplied with a turned eyebolt and pre-assembled hardware.
Specifications
- Diameter
- 2"
- Cable
- 1/8" 7X7 or 7X19 strand galvanized aircraft cable
- Hardware
- Supplied with 3/8" diameter x 4" long turned eyebolt, hex nuts, pre-assembled with 1/2" hardware
Why this partThe pulley is where
The pulley is where
the cable run lives or dies.
Three things that separate a working pulley from a placeholder.
02
Field-rated bodies
Zinc-plated steel handles plant air, washdown overspray, and outdoor humidity. The pulleys don't gum up in their second year.
03
Adaptable to the line you have
Mix fixed and swivel pulleys along a single run to navigate around machines, guards, and existing infrastructure. No need to reroute the cable through clean line-of-sight.
